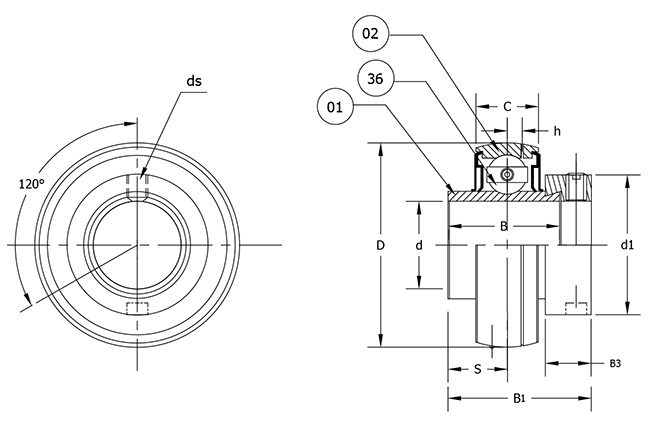

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		-	+		-	+
d		0	0.0007		0	0.018
D		0.00035	0		0.009	0
B1
B		0.0047	0		0.12	0
C
S
h
B3
D1
ds
DATE	DRAWN BY	APPROVED BY		APPROVED BY
04/25/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10535-048

NOTES
Basic Dynamic Load Rating Cr: Lbf ( kN)
Basic Static Load Rating Cor: Lbf ( kN)
Radial Internal Clearance - (C3): 0.0005 to 0.0011 inch (0.012 to 0.028 mm)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	58-62 HRc
02	Outer Ring	1	AISI 52100	58-62 HRc
36	Balls	1	AISI 52100	58-62 HRc
						Part Number HC204-12
