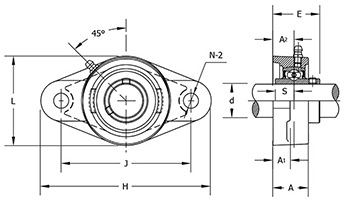

UCFL Series - Standard Duty, Set Screw Locking Type
- Standard duty unit, set screw locking
- Cast-iron housing
- Wide inner ring bearing
- Dual heavy-duty slinger type contact seals
- Anti-Rotation device
- Triple lip seals (R3 suffix) optional
| Specifications: | |
|---|---|
| Unit No. | UCFL201-8S |
| Bearing Type | Standard duty unit, set screw locking |
| Material | Cast iron housing, AISI 52100 steel insert |
| Shaft Diameter | 0.5 in |
| Insert No. | UC201-8S |
| Housing No. | FL203 |
| Basic Static Load Rating (Cor) | 1034.12 lbs |
| Weight | 0.99 lbs |
| Basic Dynamic Load Rating (Cr) | 2158.17 lbs |
