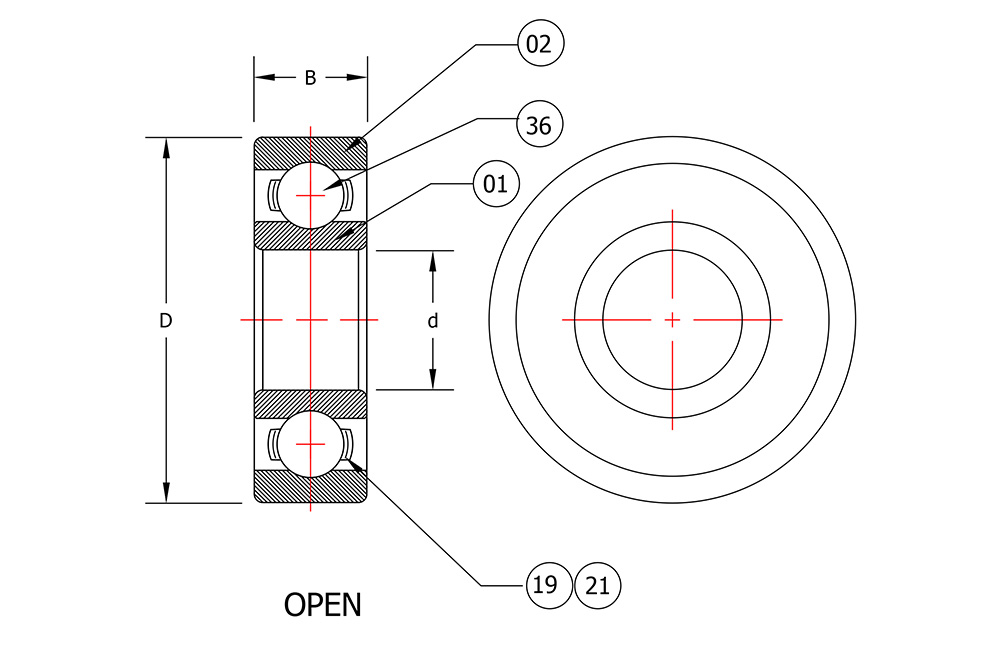

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.25	0	0.0003	6.3500	0	0.008
D	0.625	0	0.0003	15.8750	0	0.008
B	0.196	0	0.0047	4.9784	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
04/29/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10287OP-004

NOTES
ABEC 1
Basic Dynamic Load Rating Cr: 268 Lbf (1.1921 kN)
Basic Static Load Rating Cor: 133 Lbf (0.5916 kN)
Radial Internal Clearance - (C0): +0.00008 to -0.00051 inch (+0.002 to -0.013 mm)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	440C Stainless	58-60 HRc
02	Outer Ring	1	440C Stainless	58-60 HRc
36	Balls		440C Stainless	58-60 HRc
19	Retainer	2	304 Stainless
21	Rivets		Stainless Steel 300 Series
						Part Number SSR4
