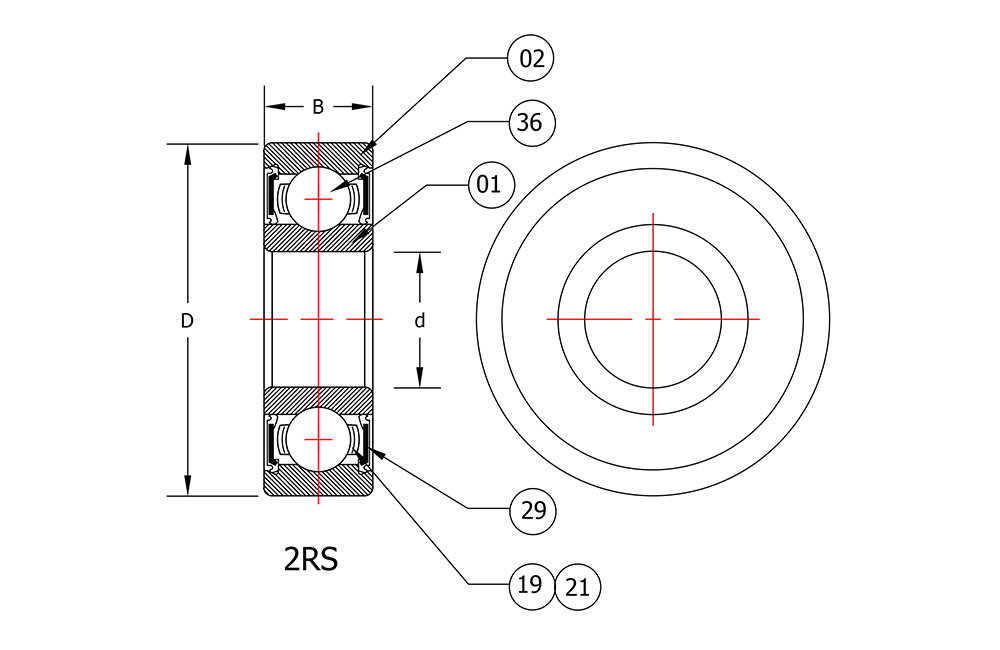

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.5906	0	0.0003	15	0	0.008
D	1.2598	0	0.0004	32	0	0.01
B	0.3543	0	0.0047	9	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
04/29/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT102862RS-006

NOTES
ABEC 1
Grease: FM222
Basic Dynamic Load Rating Cr: 1010 Lbf (4.4927 kN)
Basic Static Load Rating Cor: 630 Lbf (2.8024 kN)
Radial Internal Clearance - (C0): +0.003 to -0.018 mm (+0.00012 to -0.00071 inch)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	440C Stainless	58-60 HRc
02	Outer Ring	1	440C Stainless	58-60 HRc
36	Balls		440C Stainless	58-60 HRc
19	Retainer	2	304 Stainless
21	Rivets		Stainless Steel 300 Series
29	Seals	2	NBR
						Part Number SS6002 2RS FM222
