DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	1.0000	0	0.0004	25.4001	0	0.1
D	2.000	0	0.0005	50.8001	0	0.013
B	0.5000	0	0.0047	12.7000	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
04/25/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT102862RS-011

NOTES
ABEC 1
Grease: Mobil Polyrex EM, 30-40% free volume fill
Basic Dynamic Load Rating Cr: 2261 Lbf (10.0574 kN)
Basic Static Load Rating Cor: 1350 Lbf (6.0051 kN)
Radial Internal Clearance - (C0): +0.0002 to -0.0008 inch (+0.005 to -0.02 mm)

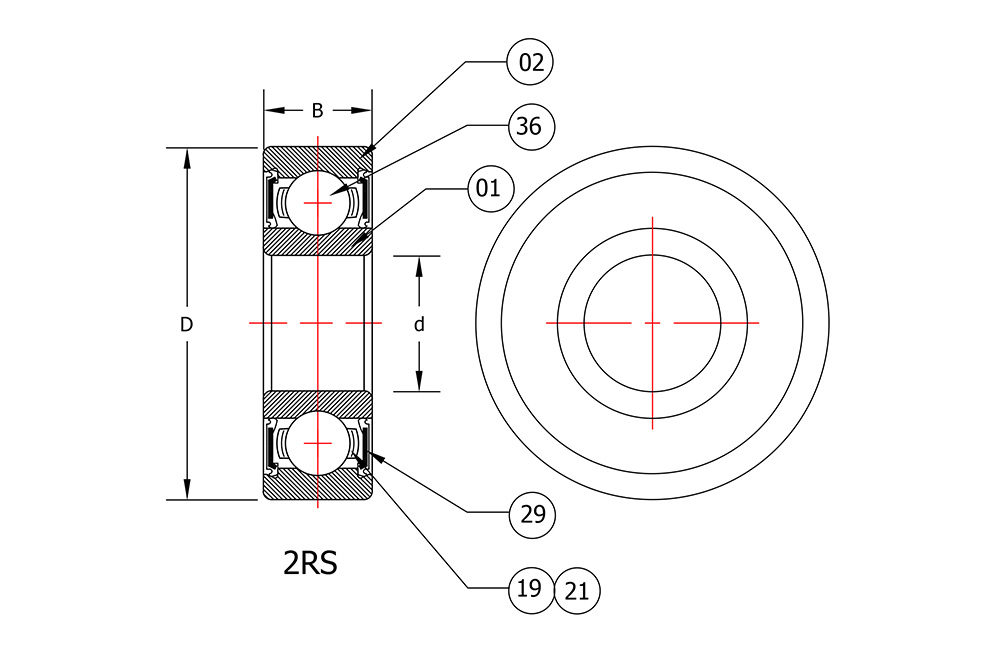

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	60-64 HRc
02	Outer Ring	1	AISI 52100	60-64 HRc
36	Balls		AISI 52100	60-64 HRc
19	Retainer	2	8F
21	Rivets		AISI 1020
29	Seals	2	NBR
						Part Number R16 2RS PRX
