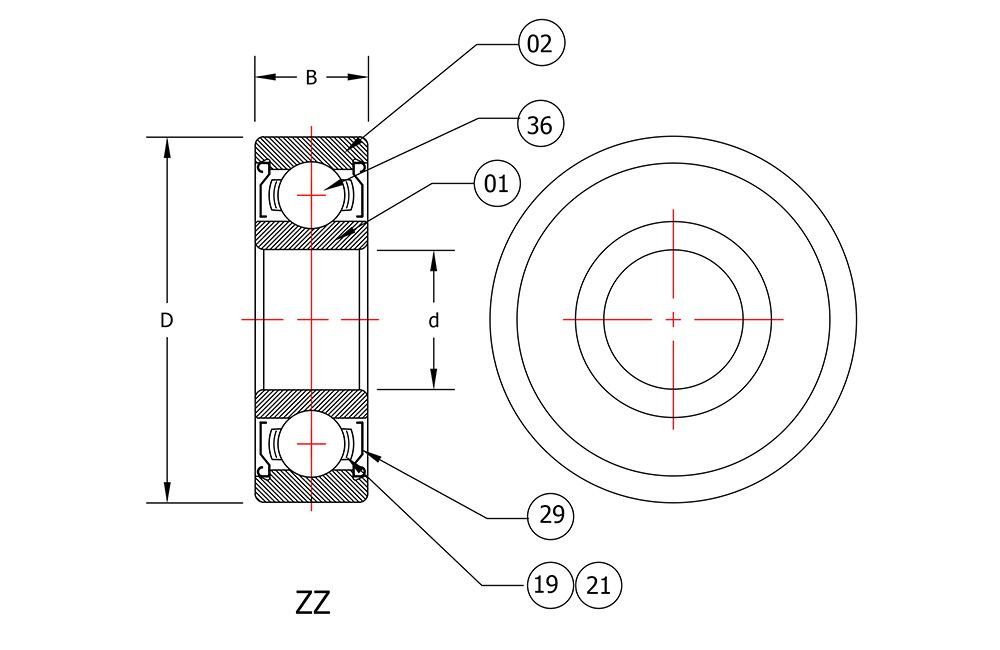

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.7500	0	0.0003	19.0500	0	0.008
D	1.625	0	0.0004	41.2751	0	0.01
B	0.4375	0	0.0047	11.1125	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
04/29/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10287ZZ-009

NOTES
ABEC 1
Grease: Mobil Polyrex EM, 30-40% free volume fill
Basic Dynamic Load Rating Cr: 1770 Lbf (7.8734 kN)
Basic Static Load Rating Cor: 1020 Lbf (4.5372 kN)
Radial Internal Clearance - (C0): +0.0002 to -0.0008 inch (+0.005 to -0.02 mm)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	60-64 HRc
02	Outer Ring	1	AISI 52100	60-64 HRc
36	Balls		AISI 52100	60-64 HRc
19	Retainer	2	8F
21	Rivets		AISI 1020
29	Shields	2	AISI 1020	25-30 HRc
						Part Number R12 ZZ PRX
