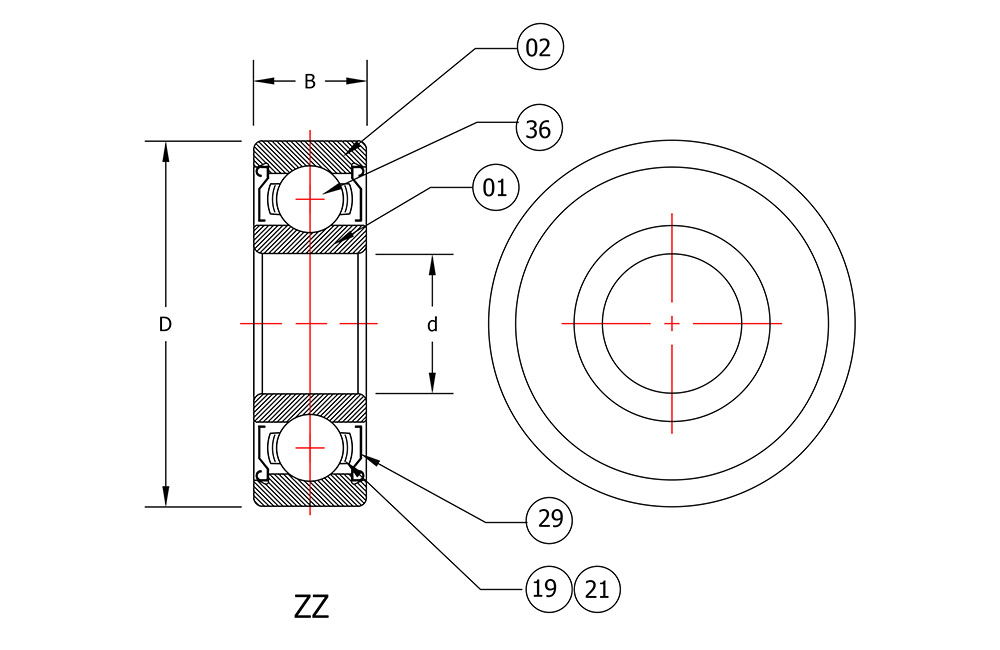

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.2756	0	0.0003	7	0	0.008
D	0.5512	0	0.0003	14	0	0.008
B	0.1969	0	0.0047	5.0	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
04/28/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10287ZZ-007

NOTES
ABEC 1
Grease: Mobil Polyrex EM, 30-40% free volume fill
Basic Dynamic Load Rating Cr: 126 Lbf (0.5605 kN)
Basic Static Load Rating Cor: 55 Lbf (0.2447 kN)
Radial Internal Clearance - (C0): +0.002 to -0.013 mm (+0.0001 to -0.0005 inch)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	60-64 HRc
02	Outer Ring	1	AISI 52100	60-64 HRc
36	Balls		AISI 52100	60-64 HRc
19	Retainer	2	8F
21	Rivets		AISI 1020
29	Shields	2	AISI 1020	25-30 HRc
						Part Number L1470 ZZ SRL
