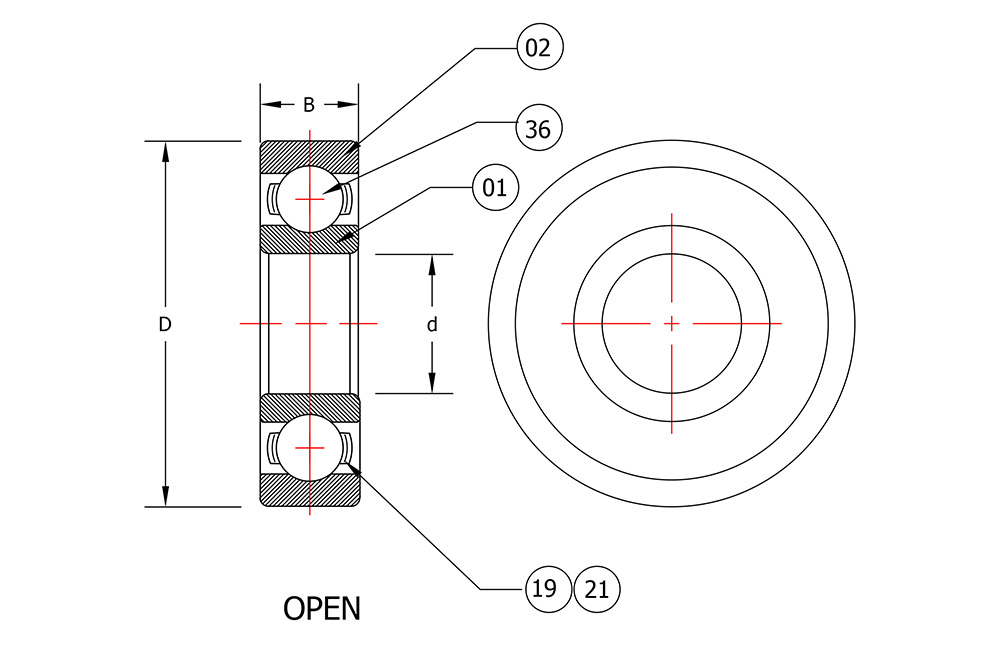

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.5906	0	0.0003	15	0	0.008
D	0.9449	0	0.0004	24	0	0.009
B	0.1969	0	0.0047	5	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
04/25/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10287NOP-003

NOTES
ABEC 1
Basic Dynamic Load Rating Cr: 470 Lbf (2.0907 kN)
Basic Static Load Rating Cor: 290 Lbf (1.2900 kN)
Radial Internal Clearance - (C0): +0.003 to -0.018 mm (+0.0001 to -0.0007 inch)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	60-64 HRc
02	Outer Ring	1	AISI 52100	60-64 HRc
36	Balls		AISI 52100	60-64 HRc
19	Retainer	2	8F
21	Rivets		AISI 1020
						Part Number 61802
